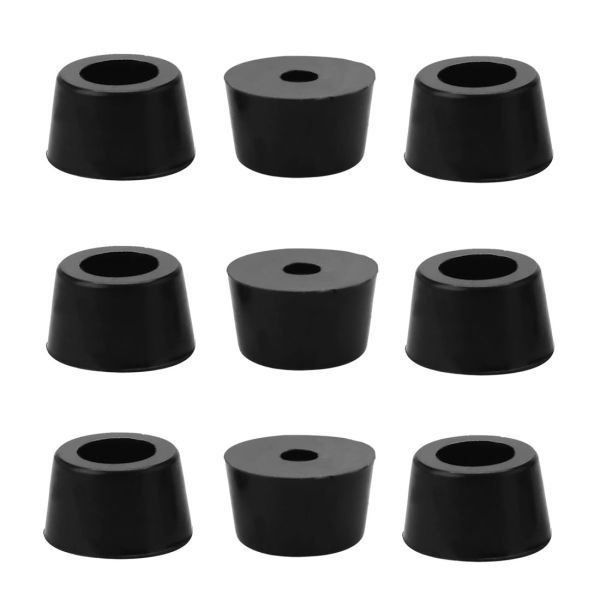

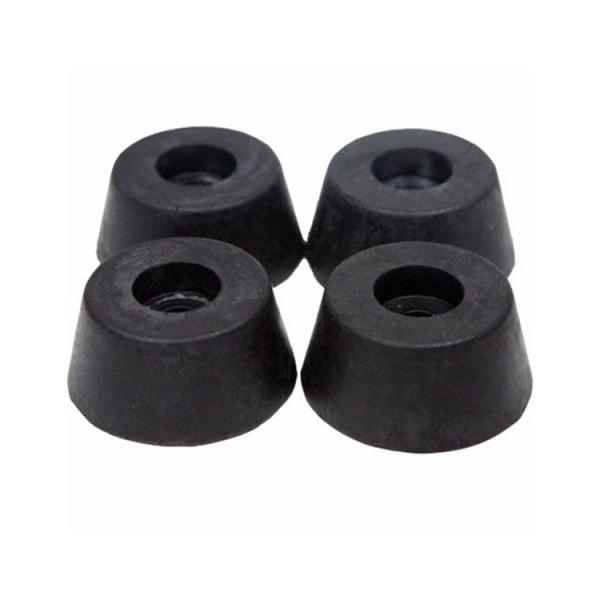

Custom Molded Rubber Sleeve Bushing Protect Sleeve Rubber Bush

Brand Name : FQ

Model Number : FQ-Moldel Rubber Parts

Place of Origin : China

MOQ : 500

Price : custom

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pcs per month

Delivery Time : 5-8 work days

Packaging Details : Carton

Type : Moldel Rubber Parts

Shape : Customizable

Color : Customizable

Production Capacity : 10000pieces/Month

Packing : Plastic bags and ctn

Feature : buffering

Sample : Freely Offered

Service : OEM ODM

Contact Now

Custom Molded Rubber Sleeve Bushing Protect Sleeve Rubber Bush

Product Description

Rubber bushing/rubber stopper/rubber shock absorber is vulcanized with various of material, such as EPDM, NR,SBR etc.
With Good resistance to seasonality, heat resistance, chlorination resistance, aging resistance.
Inside stainless steel and It has a very good damping effect.
Are widely applied in any area, such as furniture, Chassis instrument etc

Production Description

Item Name	Rubber bushing, ruubber stopper, rubber shock absorber
Material	EPDM,NBR,NR,SBR,PVC,EPT, PP/ABS
Color	Black, white, red,etc
Dimension	As client's requirement
Hardness	30~90ShA
Feature	High elasticity, insulation, abrasion resistance, oil resistance, aging resistance, high temperature resistance, cold resistance, anti-corrosion, anti-static
Application	Removable instruction,furniture,etc
OEM	welcome
MOQ	Meet your requirement
Certification	REACH, ROHS,FDA,SGS,etc

Custom Molded Rubber Sleeve Bushing Protect Sleeve Rubber Bush

The advantage and property of rubber bushing/rubber stopper/rubber shock absorber
1.We adopt heighten new technology craft
2.The material of rubber bushing is complete fresh and tasteless
3.Not fade, anti-slip wear-resistant anti - pressure , damping, acid and alkali resistant
4. Environment friendly

The different material of rubber bushing will cause different property.
EPDM/NBR/silicone/SBR/PP/PVC etc.

Items	EPDM	NR	silicone	PVC
Hardness (Sha)	30~85	30~90	20~85	50~95
Tensile strength (Mpa)	≥8.5MPa	> 20 Mpa	3~8	10~50
Elongation(%)	200~550	1000%	200~800	200~600
Specific Gravity	0.75-1.6	1.15-1.21	1.25~1.35	1.3~1.7
Temperature range	-40~+120°C	-50~70ºC.	-55~+350°C	-29°C - 65.5°C

1. the property of NR
It has good wear resistance, high elasticity, breaking strength and elongation, But in the air, it is easy to get age, and it is get sticky when it get in touch with heat, which is easy to expand and dissolve in mineral oil or gasoline, but it is resistant to strong acid, but not to Alkali . working temperature is -50~70ºC.
2. the property of EPDM
Weather ability, aging resistance, ozone resistance, chemical stability are excellent, and CFCS and a variety of refrigerants. Working temperature is -50~150
3. the property of silicone
It has excellent heat resistance, cold resistance, ozone resistance and atmospheric aging resistant.Good electrical insulation performance,The tensile strength and wear resistance are generally poor and has non- oil resistant. The working temperature is -55~250ºC
4. The property of NBR
Good oil resistance, heat resistance, abrasion resistance, solvent resistance and high - pressure oil,But it is not suitable for polar solvents, such as ketones, ozone, nitro-hydrocarbons, and chloroform. The working temperature is -40~120 ºC
5. the property of CR
It has good elasticity, wear resistance and atmospheric aging resistance. It is not afraid of violent distortion and flammability.Chemical stability. The working temperature is -40~100 ºC
6. The property of FKM
Excellent high temperature resistance,And have excellent chemical resistance, most oil and solvent (other than ketones and esters).cold resistance is not good.
